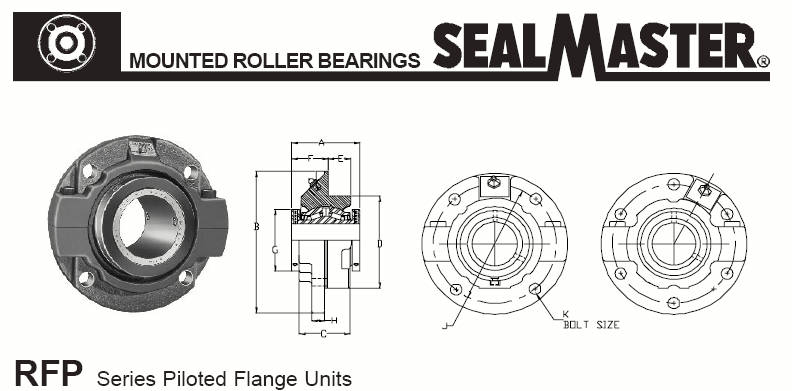

RFP-103-C、RFP-104-C、RFP-106-C、RFP-107

SHAFT

DIAM. IN.

STANDARD

SEAL

CONTACT

 SEAL

HI-TEMP

(1) SEAL

APPROX.

 WT. IN

LBS.

DIMENSIONS IN INCHES

A

B

C

D (2)

+.000

-.002

E

F

G

H

J

K

PART NO.

PART NO.

PART NO.

1 3/16

1 1/4

RFP-103

RFP-104

RFP-103-C

RFP-104-C

RFP-103-N

RFP-104-N

5.5

2.75

5.00

1.75

3.375

.88

1.31

2.25

.44

4.12

.38

1 3/8

1 7/16

RFP-106

RFP-107

RFP-106-C

RFP-107-C

RFP-106-N

RFP-107-N

6.8

3.00

5.25

2.00

3.625

.94

1.50

2.62

.50

4.38

.38

1 1/2

1 5/8

1 11/16

RFP-108

RFP-110

RFP-111

RFP-108-C

RFP-110-C

RFP-111-C

RFP-108-N

RFP-110-N

RFP-111-N

10.1

3.38

6.12

2.25

4.250

1.12

1.56

2.88

.50

5.12

.44

1 3/4

1 15/16

2

RFP-112

RFP-115

RFP-200

RFP-112-C

RFP-115-C

RFP-200-C

RFP-112-N

RFP-115-N

RFP-200-N

11.6

3.50

6.38

2.31

4.500

1.25

1.56

3.25

.56

5.38

.44

2 3/16

RFP-203

RFP-203-C

RFP-203-N

14.5

3.75

7.12

2.50

5.000

1.31

1.69

3.62

.56

6.00

.50

2 1/4

2 7/16

2 1/2

RFP-204

RFP-207

RFP-208

RFP-204-C

RFP-207-C

RFP-208-C

RFP-204-N

RFP-207-N

RFP-208-N

19.0

4.00

7.62

2.75

5.500

1.44

1.81

3.94

.62

6.50

.50

2 11/16

2 3/4

2 15/16

3

RFP-211

RFP-212

RFP-215

RFP-300

RFP-211-C

RFP-212-C

RFP-215-C

RFP-300-C

RFP-211-N

RFP-212-N

RFP-215-N

RFP-300-N

26.7

4.50

8.75

2.88

6.375

1.56

2.00

4.75

.75

7.50

.62

3 3/16

3 7/16

3 1/2

RFP-303

RFP-307

RFP-308

RFP-303-C

RFP-307-C

RFP-308-C

RFP-303-N

RFP-307-N

RFP-308-N

42.6

5.00

10.25

3.38

7.375

1.62

2.44

5.50

.88

8.62

.75

3 15/16

4

RFP-315

RFP-400

RFP-315-C

RFP-400-C

RFP-315-N

RFP-400-N

55.2

6.25

10.88

4.38

8.125

2.44

2.69

6.00

.94

9.38

.75

4 7/16

4 1/2

RFP-407

RFP-408

RFP-407-C

RFP-408-C

RFP-407-N

RFP-408-N

91.0

6.75

13.50

4.62

10.250

2.38

3.03

6.50

1.00

11.75*

.75

4 15/16

5

RFP-415

RFP-500

RFP-415-C

RFP-500-C

RFP-415-N

RFP-500-N

115.0

7.25

14.75

5.38

11.000

2.88

2.97

7.31

1.25

12.75*

.88
