| CFD-1-3/8、CCFD-1-3/8、CFD-1-5/8、CCFD-1-5/8 |
|
上海川代轴承机械有限公司 新闻动态 2026-6-18
|
|
 |
|

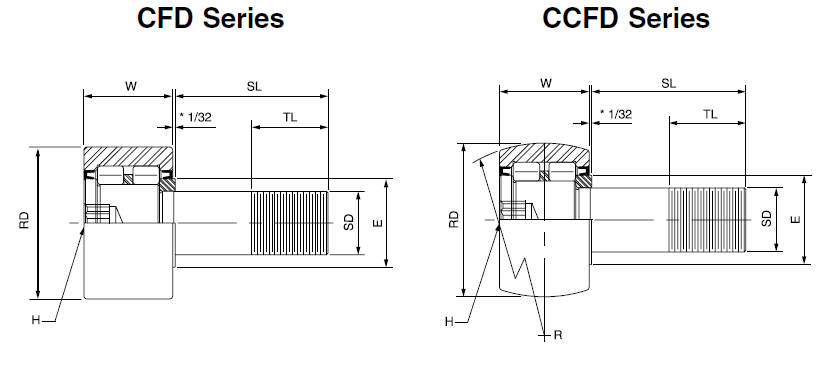

Bearing-Number |
Roller
Diameter
RD
+.000
-.001 |
Rolle
-Width-W
+.000
-.005 |
Stud-Di
ameterSD
+.001
-.000 |
Stud
Length
SL |
Min.
Thread
-Length-TL |
Fine
Threads
Class-2A |
Hex-Hole
Size-H |
Endplate
OD
E |
Crown
Radius-R
(CCFD) |
Rec’d-Hsg.
Bore
+.0002
-.0003 |
Max.
Rec’d
Torque**
In.-Lbs. |
ISO/ABMA-Load-Rating*** |
Track-Roller
Load-Rating
Dynamic-Lbs. |
|
Dynamic-Lbs. |
Static-Lbs. |
|
CFD-1-1/4 |
CCFD-1-1/4 |
1.250 |
.750 |
.500 |
1-1/4 |
5/8 |
1/2-20 |
1/4 |
45/64 |
14 |
.5003 |
350 |
4000 |
4260 |
3300 |
|
CFD-1-3/8 |
CCFD-1-3/8 |
1.375 |
.750 |
.500 |
1-1/4 |
5/8 |
1/2-20 |
1/4 |
45/64 |
14 |
.5003 |
350 |
4000 |
4260 |
3600 |
|
CFD-1-1/2 |
CCFD-1-1/2 |
1.500 |
.875 |
.625 |
1-1/2 |
3/4 |
5/8-18 |
5/16 |
55/64 |
20 |
.6253 |
650 |
6150 |
6910 |
5000 |
|
CFD-1-5/8 |
CCFD-1-5/8 |
1.625 |
.875 |
.625 |
1-1/2 |
3/4 |
5/8-18 |
5/16 |
55/64 |
20 |
.6253 |
650 |
6150 |
6910 |
5400 |
|
CFD-1-3/4 |
CCFD-1-3/4 |
1.750 |
1.000 |
.750 |
1-3/4 |
7/8 |
3/4-16 |
5/16 |
15/16 |
20 |
.7503 |
1250 |
7900 |
9190 |
6650 |
|
CFD-1-7/8 |
CCFD-1-7/8 |
1.875 |
1.000 |
.750 |
1-3/4 |
7/8 |
3/4-16 |
5/16 |
15/16 |
20 |
.7503 |
1250 |
7900 |
9190 |
7100 |
|
CFD-2 |
CCFD-2 |
2.000 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
7/16 |
1-5/32 |
24 |
.8753 |
1500 |
12100 |
14600 |
9500 |
|
CFD-2-1/4 |
CCFD-2-1/4 |
2.250 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
7/16 |
1-5/32 |
24 |
.8753 |
1500 |
12100 |
14600 |
10500 |
|
CFD-2-1/2 |
CCFD-2-1/2 |
2.500 |
1.500 |
1.000 |
2-1/4 |
1-1/8 |
1-14 |
1/2 |
1-5/16 |
30 |
1.0003 |
2250 |
16600 |
22600 |
14000 |
|
CFD-2-3/4 |
CCFD-2-3/4 |
2.750 |
1.500 |
1.000 |
2-1/4 |
1-1/8 |
1-14 |
1/2 |
1-5/16 |
30 |
1.0003 |
2250 |
16600 |
22600 |
15000 |
|
CFD-3 |
CCFD-3 |
3.000 |
1.750 |
1.250 |
2-1/2 |
1-1/4 |
1-1/4-12 |
3/4 |
1-27/32 |
30 |
1.2503 |
3450 |
25100 |
36500 |
18300 |
|
CFD-3-1/4 |
CCFD-3-1/4 |
3.250 |
1.750 |
1.250 |
2-1/2 |
1-1/4 |
1-1/4-12 |
3/4 |
1-27/32 |
30 |
1.2503 |
3450 |
25100 |
36500 |
20300 |
|
CFD-3-1/2 |
CCFD-3-1/2 |
3.500 |
2.000 |
1.375 |
2-3/4 |
1-3/8 |
1-3/8-12 |
3/4 |
2-3/16 |
30 |
1.3753 |
4200 |
34200 |
52500 |
23700 |
|
CFD-4 |
CCFD-4 |
4.000 |
2.250 |
1.500 |
3-1/2 |
1-1/2 |
1-1/2-12 |
3/4 |
2-27/64 |
30 |
1.5003 |
5000 |
44100 |
67900 |
32500 |
|
CFD-5 |
CCFD-5 |
5.000 |
2.750 |
2.000 |
5-1/16 |
2-9/16 |
2-12 |
7/8 |
2-61/64 |
48 |
2.0003 |
5000 |
67800 |
109500 |
50500 |
|
CFD-6 |
CCFD-6 |
6.000 |
3.250 |
2.500 |
6 |
3 |
2-1/2-12 |
1 |
3-11/16 |
56 |
2.5003 |
5000 |
101900 |
169900 |
71500 | |
CFD-1-3/8、CCFD-1-3/8、CFD-1-5/8、CCFD-1-5/8现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
LME5UU,
NJ2309W,
6211DU,
2MMV9111WICRQUL,
3MMV9312WICRDUL,
M88043/M88010,
KT758325 C3,
NN3019ASK.M.SP,
GU35MT,
RA008RR,
SEA95/NS7CI0UL,
SEA130/NS5LI03TDL,
SEB280/NS9PE1DDL,
SEB30/S9BE1DDL,
NG350AR0,
SMK30WUU-E,
ASG-16T,
923175,
29340E,
6800ZZ,
6404,
K25×29×10,
LMB324864NAJ,
MCYRD-50,
MSF-64(F518+3-4),
202HEUH O-11 P2SF 23109,
203SST3 G-18 P2S 17558,
N1944K.M1.SP,
AR-2-1标准型膨胀芯轴承,
AX73机器皮带,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
