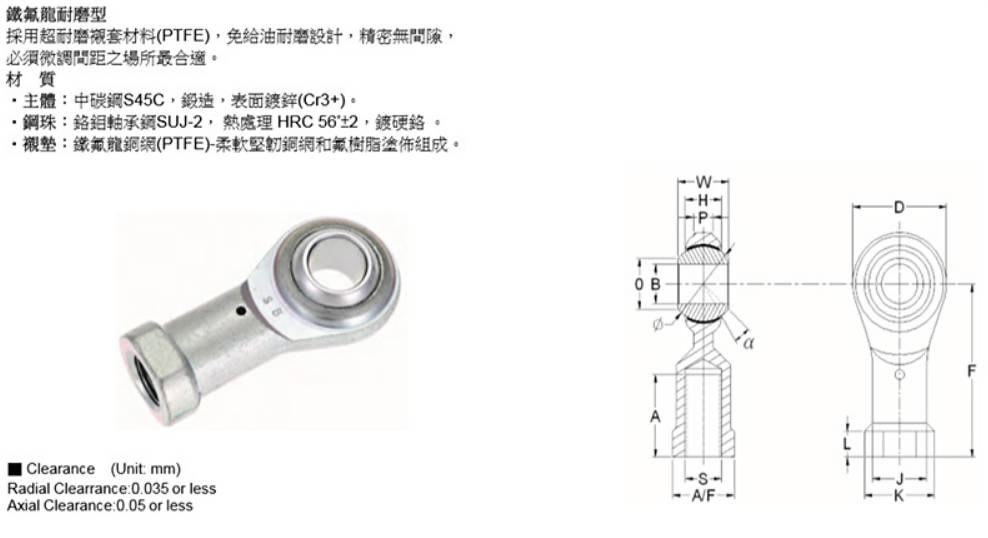

关节轴承NHS3R/L、NHS4R/L、NHS6R/L、NHS8R/L

型號

B

W

O

H

D

F

A

J

K

L

A/F

Thread

旋角

球徑
Ball Dia.
Ø

徑向荷重
Radial S.

 load
(kgf)

重量
Weight

(g)

Model No.

H7

+0 -0.1

＊

*

＊

＊

+2 -0

＊

＊

＊

+0 -0.3

S

α

NHS 3 R/L

3

6

7.4

4.5

14

21

10

6.5

8

3

7

3x0.5

13

9.30

180

6.5

NHS 4 R/L

4

7

7.6

5.3

14

24

12

8

9.5

4

8

4x0.7

13

10.32

220

10

NHS 5 R/L

5

8

7.7

5.5

17

27

12

9

11

4

9

5x0.8

13

11.11

390

16

NHS 6 R/L

6

9

8.9

6

19

30

14

10

13

5

11

6x1.0

13

12.70

500

24

NHS 8 RF/LF
NHS 8 R/L

8

12

10.4

8

23.5

36

17

13

16

5

14

8x1.0
8x1.25

13

15.88

740

41

NHS 10 RF/LF
NHS 10 R/L

10

14

12.9

10

27

45

21

15

19

7

17

10x1.25
10x1.5

13

19.05

940

70

NHS 12 RF/LF
NHS 12 R/L

12

16

15.4

11

32

50

24

18

22

7

19

12x1.25
12x1.75

13

22.23

1,100

104

NHS 14 RF/LF
NHS 14 R/L

14

19

16.8

12

36

57

27

20

25

8

21

14x1.5
14x2.0

15

25.40

1,520

158

NHS 16 RF/LF
NHS 16 R/L

16

21

19.3

13

39

64

33

22

27

8

22

16x1.5
16x2.0

15

28.58

2,020

200

NHS 18 R/L

18

23

21.8

15

44

71

36

25

31

10

27

18x1.5

15

31.75

2,520

288

NHS 20 R/L

20

25

24.3

16

47

77

40

28

34

10

30

20x1.5

15

34.93

2,780

372

NHS 22 R/L

22

28

25.9

18

50

84

43

30

37

12

32

22x1.5

15

38.10

3,590

475

NHS 25 R/L

25

31

29.6

20

56

94

48

34

42

12

36

24x2.0

15

42.85

5,430

680

NHS 30 R/L

30

37

34.8

24

67

113

58

40

50

15

41

30x2.0

15

50.80

6,910

1,020
