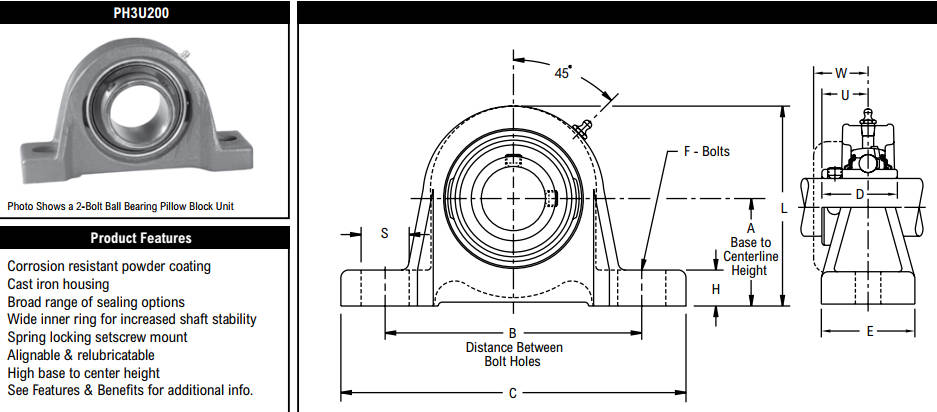

| PH3U218N、PH3U2E20、PH3U220N、PH3U222N、PH3U226N |
|
上海川代轴承机械有限公司 新闻动态 2025-8-1
|
|
|
Shaft
Diameter |
Part
Number |
A
Base to
Centerline
Height |
B
Distance
Between
Bolt Holes |
C |
D |
E |
F |
H |
L |
S |
U |
W |
Approx
Weight |
|
11/8 |
PH3U218N *■ |
2 |
51/2 |
7 |
19/16 |
115/16 |
1/2 |
11/16 |
35/8 |
7/8 |
61/64 |
129/64 |
3.80 |
|
13/16 |
PH3U219N *■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
11/4 |
PH3U2E20N *■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
30.00 |
PH3U2M30N *■ |
50.80 |
139.70 |
177.80 |
39.69 |
49.20 |
12.00 |
17.50 |
92.10 |
22.20 |
24.20 |
36.90 |
1.71 |
|
11/4 |
PH3U220N *Δ■ |
23/8 |
61/4 |
81/4 |
149/64 |
21/2 |
5/8 |
3/4 |
41/4 |
11/4 |
17/64 |
135/64 |
4.70 |
|
13/8 |
PH3U222N *Δ■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
17/16 |
PH3U223N *Δ■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
35.00 |
PH3U2M35N |
60.32 |
158.80 |
209.60 |
44.85 |
63.50 |
16.00 |
19.00 |
108.00 |
31.80 |
28.20 |
39.30 |
2.12 |
|
15/8 |
PH3U226N *Δ■ |
23/8 |
65/8 |
81/4 |
21/32 |
23/8 |
5/8 |
3/4 |
49/16 |
15/16 |
115/64 |
121/32 |
7.90 |
|
111/16 |
PH3U227N *Δ■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
13/4 |
PH3U228N *Δ■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
45.00 |
PH3U2M45N |
60.32 |
168.30 |
209.60 |
51.59 |
60.30 |
16.00 |
19.00 |
115.90 |
23.80 |
31.40 |
42.10 |
3.56 |
|
115/16 |
PH3U231N *Δ■ |
23/4 |
81/16 |
101/8 |
23/32 |
25/8 |
5/8 |
7/8 |
5 |
11/4 |
117/64 |
125/32 |
9.50 |
|
50.00 |
PH3U2M50N |
69.85 |
204.80 |
257.20 |
53.18 |
66.70 |
16.00 |
22.20 |
127.00 |
31.80 |
32.10 |
46.40 |
4.28 |
|
2 |
PH3U232N *Δ■ |
31/8 |
87/8 |
113/8 |
21/4 |
3 |
5/8 |
7/8 |
55/8 |
11/8 |
113/32 |
21/64 |
13.20 |
|
23/16 |
PH3U235N *Δ■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
55.00 |
PH3U2M55N |
79.38 |
225.40 |
288.90 |
57.15 |
76.20 |
16.00 |
22.20 |
142.90 |
28.60 |
35.70 |
51.20 |
5.94 |
|
21/4 |
PH3U236N *Δ■ |
31/8 |
87/8 |
113/8 |
21/2 |
3 |
3/4 |
7/8 |
57/8 |
11/4 |
19/16 |
27/64 |
14.40 |
|
23/8 |
PH3U238N *Δ■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
27/16 |
PH3U239N *Δ■ |
|
|
|
|
|
|
|
|
|
|
|
|
|
60.00 |
PH3U2M60N |
79.38 |
225.40 |
288.90 |
63.50 |
76.20 |
20.00 |
22.20 |
149.20 |
31.80 |
39.70 |
53.60 |
6.48 | |
