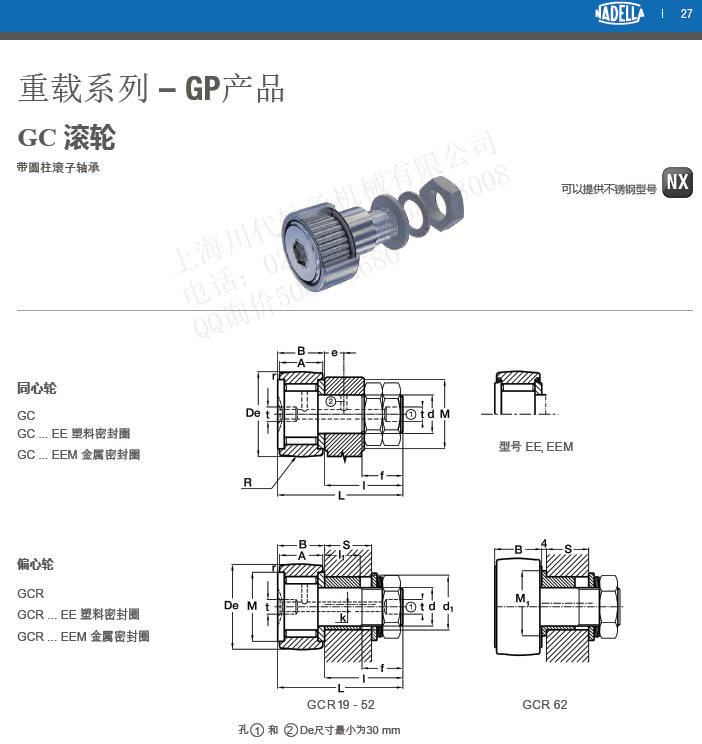

GC22、GCR24、GC28

型号1)

尺寸(mm)

型号

De

A

B max.

d

d12)

k

L max.

l max.

f

螺距

r min.

t

e

M4)

M1

P5)

l1

S min.

S max.

R

GC19

GCR19

19

11

12.2

8

11

0.5

32.7

20.5

10

1.25

0.3

4

–

15.3

–

–

10

10.5

13

160

GC22

GCR22

22

12

13.2

10

14

1

36.7

23.5

12

1.253)

0.3

4

–

18.2

–

–

11

11.5

14

200

GC24

GCR24

24

12

13.2

10

14

1

36.7

23.5

12

1.253)

0.3

4

–

18.2

–

–

11

11.5

14

200

GC26

GCR26

26

12

13.2

10

14

1

36.7

23.5

12

1.253)

0.3

4

–

20.8

–

–

11

11.5

14

200

GC28

GCR28

28

12

13.2

10

14

1

36.7

23.5

12

1.253)

0.3

4

–

20.8

–

–

11

11.5

14

200

GC30

GCR30

30

14

15.2

12

16

1

40.7

25.5

13

1.5

0.6

4

6

24.8

–

8

11

11.5

14.5

250

GC32

GCR32

32

14

15.2

12

16

1

40.7

25.5

13

1.5

0.6

4

6

24.8

–

8

11

11.5

14.5

250

GC35

GCR35

35

18

19.6

16

21

1.5

52.6

33

17

1.5

0.6

6

8

28.8

–

10

14

14.5

19

320

GC40

GCR40

40

20

21.6

18

24

1.5

58.6

37

19

1.5

1

6

8

33.8

–

12

16

16.5

22

400

GC47

GCR47

47

24

25.6

20

27

2

66.6

41

21

1.5

1

6

9

38.7

–

14

17.5

18

25

500

GC52

GCR52

52

24

25.6

20

27

2

66.6

41

21

1.5

1

6

9

38.7

–

14

17.5

18

25

500

GC62

GCR62

62

29

30.6

24

36

3

80.6

50

25

1.5

1

6

11

52

44

12

18

18.5

25.5

640
