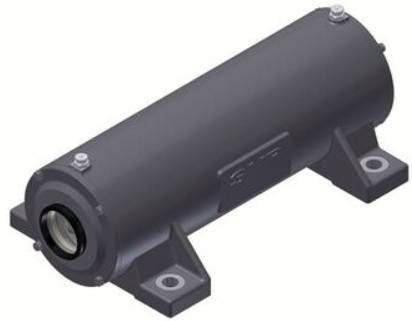

ZLG310轴承尺寸规格

Brand    SNR

d - Shaft diameter    50 mm

d1 - Shaft diameter between bearings60 mm

d3 - Outer diameter sleeve    60 mm

a - Housing length    405 mm

b - Housing foot width    210 mm

c - Housing foot height   20 mm

h - Bearing center height70 mm

h1 - Housing height  142 mm

m - Mounting hole/punches distance (length)  275 mm

n - Mounting hole distance (width)      170 mm

N - Mounting hole diameter  15 mm

B - Distance mounting hole to shaft step   77,5 mm

W - Bearing distance316,5 mm

W1 - Central shaft length267,5 mm

W2 - Right shaft end length   81 mm

A1  40 mm

A2  30 mm

A3 - ZLG foot width 45 mm

D - Bearing seat diameter      110 mm

Mass     19 kg

Material of Housing  grey cast

Initial grease quantity      168 cm³

ZLG310
