R16512392Y轴承尺寸规格 |
a) For O-ring
Size 15: Ø 4 · 1.0 (mm)
Size 20 - 45: Ø 5 · 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
b) Recommended position for pin holes (dimension E4 see general technical notes and information in the "Installation" section)
Rough-drilled holes may be present here from manufacturing. These may be bored open.
c) Lube nipple, size 15 - 20:
Funnel-type lube nipple DIN 3405-A M3x5, B2 = 1.6 mm
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
Lube nipple, size 25 - 45:
Hydraulic-type lube nipple DIN 71412-A M6x8, B2 = 9.5 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection possible on all sides.
d) Sealing plugs may be present here from manufacturing. Remove before mounting.
| T |
|
60 |
mm |
| A |
|
70 |
mm |
| A2 |
|
23 |
mm |
| B |
|
86.2 mm +0.5 |
|
| E1 |
|
57 |
mm |
| E3 |
|
40 |
mm |
| E9 |
|
11,50 |
mm |
| Dimension H2 with cover strip |
|
24,45 |
mm |
| Dimension H2 without cover strip |
|
24,25 |
mm |
| K2 |
|
13,60 |
mm |
| K4 |
|
5,50 |
mm |
| N2 |
|
7 |
mm |
| S1 |
|
6,70 |
mm |
| ØS5 |
|
7 |
mm |
| H |
|
36 |
mm |
| A1 |
|
35 |
mm |
| A3 |
|
23,50 |
mm |
| B1 |
|
57,80 |
mm |
| E2 |
|
45 |
mm |
| E8 |
|
38,30 |
mm |
| V1 |
|
7,50 |
mm |
| H1 |
|
29,90 |
mm |
| K1 |
|
12,45 |
mm |
| K3 |
|
5,50 |
mm |
| N1 |
|
9,30 |
mm |
| N6 |
|
15.2 mm ±0.5 |
|
| S2 |
|
M8 |
|
| S9 |
|
M3x5 |
| |
近期推荐轴承型号R16512392Y,
,
1631-313-10,
1662-893-10,
R1050-30-00,
R1025-030-01,
R1035-630-20,
R1074-820-00,
R1000-008-30,
R1512 510 13,
0670-216-40,
R074152000,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

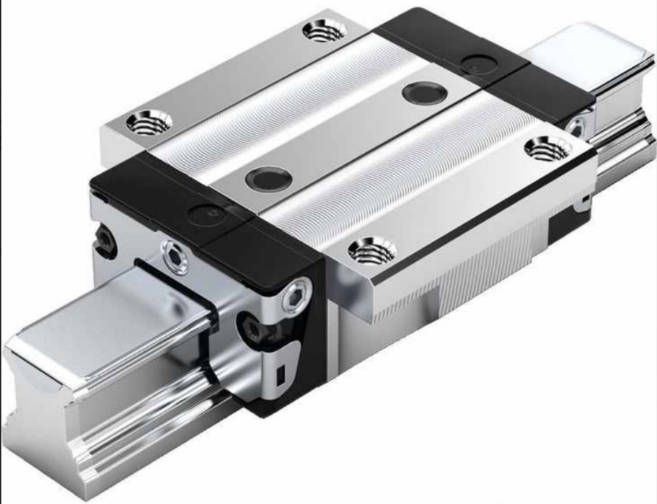

| R16512392Y产品详细图片： |
 |
| Rexroth-STAR精密轴承品牌介绍： |
| 德国博世力士乐(BOSCH REXROTH STAR)滚珠导轨导向系统是特别为机床和工业机器人而研制的，这种结构紧凑，滚珠支撑的直线导向系统分为不同的精度等级，并且具有极高的承载能力和很高的刚度。结构紧凑的组装单元有八种市场上常见的规格,在所有四个主要承载方向上具有高的额定载荷。STAR导轨和滑块在滚道区均采用独有精密加工，可以在同意精度等级内任意组合。甚至可以与滚柱导轨导向系统进行全面互换。包括STAR滑块系列，STAR导轨系列等。 |
上海川代轴承机械有限公司专业销售Rexroth-STAR精密轴承 R16512392Y轴承,Rexroth-STAR精密轴承品牌供应商,我们为您提供R16512392Y的具体的规格参数及报价，本公司同时销售包括Rexroth-STAR精密轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询Rexroth-STAR精密轴承 R16512392Y轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
