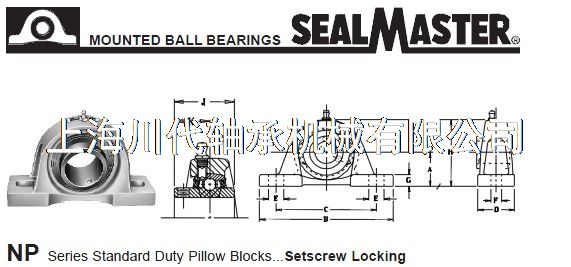

NP-204轴承尺寸规格 |
|
|
|
SHAFT-DIAM. |
PART-NO. |
BRG.-NO. |
Dimensions-in-Inches |
BOLT-
SIZE-IN. |
UNI
T-WT. |
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
|
IN--------MM |
MIN. |
MAX. |
|
1/2in
9/16in
5/8in
11/16in |
NP-8
NP-9
NP-10
NP-11 |
2-08
2-09
2-010
2-011 |
1-3/16in |
5in |
3-3/8in |
4-1/8in |
1-1/2in |
3/4in |
7/16in |
1/2in |
2-7/16in |
1-7/32in |
23/32in |
3/8in |
1.7 |
|
3/4in
20mm |
NP-12
NP-204 |
2-012
5204 |
1-5/16in |
5in |
3-3/8in |
4-1/8in |
1-1/2in |
3/4in |
7/16in |
1/2in |
2-9/16in |
1-7/32in |
23/32in |
3/8in |
1.9 |
|
13/16in
7/8in
15/16in
1in
25mm |
NP-13
NP-14
NP-15
NP-16
NP-205 |
2-013
2-014
2-015
2-1
5205 |
1-7/16in |
5-1/2in |
3-7/8in |
4-3/8in |
1-1/2in |
5/8in |
7/16in |
1/2in |
2-13/16in |
1-3/8in |
13/16in |
3/8in |
2.2 |
|
1-1/16in
1-1/8in
1-3/16in
1-1/4in
30mm |
NP-17
NP-18
NP-19
NP-20R
NP-206 |
2-11
2-12
2-13
1-14
5206 |
1-11/16in |
6-1/2in |
4-7/16in |
5-1/16in |
1-7/8in |
13/16in |
9/16in |
9/16in |
3-3/8in |
1-1/2in |
7/8in |
1/2in |
3.6 |
|
1-1/4in
1-5/16in
1-3/8in
1-7/16in
35mm |
NP-20
NP-21
NP-22
NP-23
NP-207 |
2-14
2-15
2-16in
2-17
5207 |
1-7/8in |
6-9/16in |
4-11/16in |
5-5/16in |
1-7/8in |
13/16in |
9/16in |
5/8in |
3-3/4in |
1-11/16in |
1in |
1/2in |
4.5 |
|
1-1/2in
1-9/16in
40mm |
NP-24
NP-25
NP-208 |
2-18
2-19
5208 |
1-15/16in |
7-1/4in |
4-7/8in |
5-7/8in |
2-1/8in |
1in |
9/16in |
11/16in |
3-15/16in |
1-15/16in |
1-3/16in |
1/2in |
5.7 |
|
1-5/8in
1-11/16in
1-3/4in
45mm |
NP-26
NP-27
NP-28
NP-209 |
2-110
2-111
2-112
5209 |
2-1/8in |
7-1/2in |
5-7/16in |
6-1/16in |
2-1/8in |
13/16in |
9/16in |
11/16in |
4-1/4in |
1-15/16in |
1-3/16in |
1/2in |
6.5 |
|
1-13/16in
1-7/8in
1-15/16in
2in
50mm |
NP-29
NP-30
NP-31
NP-32R
NP-210 |
2-113
2-114
2-115
1-2
5210 |
2-1/4in |
8-1/8in |
6in |
6-1/2in |
2-3/8in |
7/8in |
11/16in |
3/4in |
4-9/16in |
2-1/32in |
1-9/32in |
5/8in |
7.9 |
|
2in
2-1/8in
2-3/16in
55mm |
NP-32
NP-34
NP-35
NP-211 |
2-2
2-22
2-23
5211 |
2-1/2in |
8-5/8in |
6-1/2in |
7in |
2-3/8in |
7/8in |
11/16in |
3/4in |
5in |
2-3/16in |
1-5/16in |
5/8in |
9.7 |
|
2-1/4in
2-3/8in
2-7/16in
60mm |
NP-36
NP-38
NP-39
NP-212 |
2-24
2-26
2-27
5212 |
2-3/4in |
9-1/2in |
6-7/8in |
7-5/8in |
2-3/4in |
1in |
11/16in |
7/8in |
5-9/16in |
2-9/16in |
1-9/16in |
5/8in |
13.7 | |
近期推荐轴承型号NP-204,
,
TF-10,
2-015,
USFB5000A-107,
MFC-20T,
S-3080-M43,
NPL-206,
SEHB-19、孔径1-3/16(英寸in),
RPBXT-207-C4、孔径2-7/16(英寸in),
ERCI-212-C、孔径2-3/4(英寸in),
NP-31两孔立式座,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|
| SEALMASTER高温轴承品牌介绍： |
| SEALMASTER连座轴承创建于1935年,是北美连座轴承生产商.广泛应用于电力,钢铁,石油工业等领域.其轴承保持架全部是铜制的,内圈滚道区域经过硬化处理,提高了轴承的耐磨性.该轴承密封性能良好,密封圈使用SEALMASTER公司的专利产品,适用于粉尘大,工况差等场合.其最大内经5英寸(127MM).SEALMASTER轴承有耐高温450℉(232℃)、有防水,防化学物质、C型密封以及低噪音CXU型密封和耐腐蚀CR系列．SEALMASTER轴承分单面螺栓锁紧,双面螺栓锁紧(D系列)和SEALMASTER轴承分单面螺栓锁紧,双面螺栓锁紧(D系列)和SEALMASTER公司设计锁紧圈锁紧(T系列)三种。D系列锁紧的设计使轴承与轴配合更加紧密，受力更加均匀，从而提高SEALMASTER轴承使用寿命。 |
上海川代轴承机械有限公司专业销售SEALMASTER高温轴承 NP-204轴承,SEALMASTER高温轴承品牌供应商,我们为您提供NP-204的具体的规格参数及报价，本公司同时销售包括SEALMASTER高温轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询SEALMASTER高温轴承 NP-204轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
