R1552 410 04轴承尺寸规格

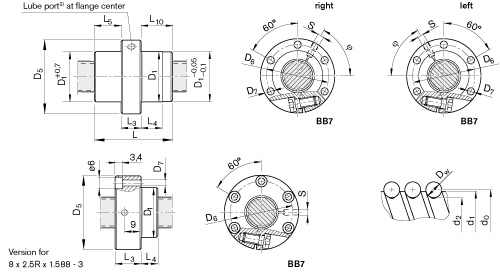

Click to enlarge picture.

Part numbers (TNR)	1552- 4-1 004
Size d0 x P x Dw - i	40 x 5L x 3,5 - 5
Category	B (stocked, but availability should be inquired)
C [N]	29100
C0 stat. [N]	64100
vmax [m/min]	19	See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed ncr
Centering diameter D1after adjustment min. [mm]	55.931
Centering diameter D1after adjustment max. [mm]	55.966
d1 [mm]	39
d2 [mm]	36.4
D1 f9 [mm]	56
Hole pattern	BB7
D6 [mm]	68
D7 [mm]	6.6
D5 [mm]	80
L [mm]	54
L3 [mm]	20
L4 [mm]	10
L5 [mm]	17
L10 [mm]	17
φ [°]	65
S [mm]	M8x1	Lube port machining: flat surface L3 ≤ 13 mm, countersink L3 > 14 mm. For size 8 x 2.5, a funnel-type lube nipple DIN 3405 is provided.
m [kg]	0.87
Product group info	Rexroth mounting dimensions  With standard seals Reinforced seals, see catalog R310EN 3301 Adjustable preload For precision-rolled screws SN-R of tolerance grade T5, T7  With left-hand thread in some versions Note: The Front Lube Unit is only available for right-hand screw threads When setting up applications, do not allow components to collide with the Front Lube Unit.
