R1502 460 65轴承尺寸规格 |

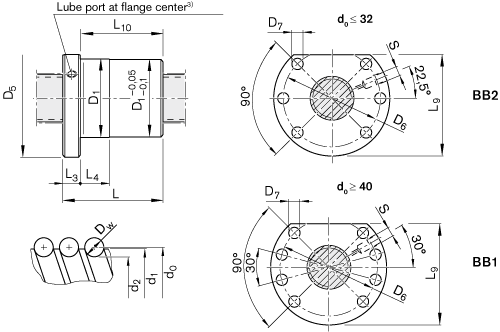

| Click to enlarge picture.
|
|
| Part numbers (TNR) |
R1502 460 65 |
|
| Size d0 x P x Dw - i |
40 x 16R x 6 - 4 |
|
| Category |
B (stocked, but availability should be inquired) |
|
| C [N] |
49700 |
|
| C0 stat. [N] |
85900 |
|
| vmax [m/min] |
60 |
| |
See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed ncr | |
| d1 [mm] |
38 |
|
| d2 [mm] |
33.8 |
|
| D1 g6 [mm] |
63 |
|
| D5 [mm] |
93 |
|
| Hole pattern |
BB1 |
|
| D6 [mm] |
78 |
|
| D7 [mm] |
9 |
|
| L [mm] |
90 |
|
| L3 [mm] |
15 |
|
| L4 [mm] |
25 |
|
| L9 [mm] |
81.5 |
|
| L10 [mm] |
75 |
|
| S [mm] |
M8x1 |
| |
See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed nk | |
| m [kg] |
1.51 |
|
| Product group info |
Standard series
Mounting dimensions per DIN 69 051, Part 5
Flange type C
With standard seals
Reinforced seals see Catalog R310EN 3301
With backlash, reduced backlash, preload 2%; 3%; 5%
For precision-rolled scews SN-R of tolerance grade T5, T7, T9
When setting up application, do not allow components to collide with the Front Lube Unit. |
| |
近期推荐轴承型号R1502 460 65,
,
1653-511-10,
R162142220,
1621-332-10,
R0670-225-00,
R1331-116-00,
R1099-220-85,
R1512 570 13,
R067102500,
1621-413-10,
R1693-213-10、1693-213-10、R169321310,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|
| Rexroth-STAR精密轴承品牌介绍： |
| 德国博世力士乐(BOSCH REXROTH STAR)滚珠导轨导向系统是特别为机床和工业机器人而研制的，这种结构紧凑，滚珠支撑的直线导向系统分为不同的精度等级，并且具有极高的承载能力和很高的刚度。结构紧凑的组装单元有八种市场上常见的规格,在所有四个主要承载方向上具有高的额定载荷。STAR导轨和滑块在滚道区均采用独有精密加工，可以在同意精度等级内任意组合。甚至可以与滚柱导轨导向系统进行全面互换。包括STAR滑块系列，STAR导轨系列等。 |
上海川代轴承机械有限公司专业销售Rexroth-STAR精密轴承 R1502 460 65轴承,Rexroth-STAR精密轴承品牌供应商,我们为您提供R1502 460 65的具体的规格参数及报价，本公司同时销售包括Rexroth-STAR精密轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询Rexroth-STAR精密轴承 R1502 460 65轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
