RAK1轴承尺寸规格 |
•
D82 TIMKEN PRODUCTS CATALOG
D
A
BALL BEARINGS
Unit Shaft H H2 B1 J L A H1 N N1 d1 S1 T Bolt Bearing Collar Housing Unit
Dia. Size Number(1) Number Number Wt.
mm mm mm mm mm mm mm mm mm mm mm mm mm mm new kg
in. in. in. in. in. in. in. in. in. in. in. in. in. in. RAK (TAK/LAK) (old) lbs.
RAK, LAK 1/2 26.99 53.2 37.3 92.1 123.8 30.2 8.7 11.1 22.2 28.6 23.4 15.1 10 G1008KRRB (KLLB) S1008K T-40238 0.454
RAK, LAK 5/8 1 1/16 2 3/32 1 15/32 3 5/8 4 7/8 1 3/16 11/32 7/16 7/8 1 1/8 59/64 19/32 3/8 G1010KRRB (KLLB) S1010K (T-30595) 1
RAK 11/16 G1011KRRB S1011K
RAK 17 GE17KRRB SE17K
RAK, LAK 3/4 31.75 62.7 43.7 96 127 31.8 11.9 11.1 19.8 33.3 26.6 15.9 10 G1012KRRB (KLLB) S1012K T-40239 0.635
RAK 20 1 1/4 2 15/32 1 23/32 3 25/32 5 1 1/4 15/32 7/16 25/32 1 5/16 1 3/64 5/8 3/8 GE20KRRB SE20K (T-30555) 1.4
RAK, TAK 7/8 G1014KRRB (KPPB3) S1014K
RAK, TAK, LAK 15/16 33.34 68.3 44.4 104.8 139.7 35.7 11.9 11.1 20.6 38.1 27 17.9 10 G1015KRRB (KPPB3/KLLB) S1015K T-30365 0.803
RAK, TAK, LAK 1 1 5/16 2 11/16 1 3/4 4 1/8 5 1/2 1 13/32 15/32 7/16 13/16 1 1/2 1 1/16 45/64 3/8 G1100KRRB (KPPB3/KLLB) S1100K 1.77
RAK, TAK 25 GE25KRRB (KPPB3) SE25K
RAK, TAK 1 1/16 G1101KRRB (KPPB3) S1101K
RAK, TAK, LAK 1 1/8 39.69 80.2 48.4 117.5 157.2 39.7 13.5 14.3 23.8 44.1 30.2 19.9 12 G1102KRRB (KPPB3/KLLB) S1102K T-40241 1.297
RAK, TAK, LAK 1 3/16 1 9/16 3 5/32 1 29/32 4 5/8 6 3/16 1 9/16 17/32 9/16 15/16 1 47/64 1 3/16 25/32 1/2 G1103KRRB (KPPB3/KLLB) S1103K (T-30300) 2.86
RAK, TAK 30 GE30KRRB (KPPB3) SE30K
RAK, TAK, LAK 1 1/4 G1104KRRB (KPPB2/KLLB) S1104K
RAK, TAK 1 5/16 46.04 92.1 51.2 130.2 166.7 45.2 16.7 14.3 24.6 54 32.5 22.7 12 G1105KRRB (KPPB2) S1105K T-40242 1.674
RAK, TAK 1 3/8 1 13/16 3 5/8 2 1/64 5 1/8 6 9/16 1 25/32 21/32 9/16 31/32 2 1/8 1 9/32 57/64 1/2 G1106KRRB (KPPB2) S1106K (T-30410) 3.69
RAK, TAK, LAK 1 7/16 G1107KRRB (KPPB2/KLLB) S1107K
RAK, TAK 35 GE35KRRB (KPPB2) SE35K
RAK, TAK, LAK 1 1/2 49.21 100 56.4 136.5 179.4 47.6 19 14.3 26.2 60.3 34.9 23.8 12 G1108KRRB (KPPB3/KLLB) S1108KT T-40243 2.15
RAK, TAK 1 9/16 1 15/16 3 15/16 2 7/32 5 3/8 7 1/16 1 7/8 3/4 9/16 1 1/32 2 3/8 1 3/8 15/16 1/2 G1109KRRB (KPPB3) S1109KT (T-30484) 4.74
RAK, TAK 40 GE40KRRB (KPPB3) SE40K
RAK, TAK 1 5/8 G1110KRRB (KPPB4) S1110K
RAK, TAK, LAK 1 11/16 52.39 104.8 56.4 149.2 191.3 50.8 17.5 14.3 28.6 63.5 34.9 25.4 12 G1111KRRB (KPPB4/KLLB) S1111K T-40244 2.409
RAK, TAK, LAK 1 3/4 2 1/16 4 1/8 2 7/32 5 7/8 7 17/32 2 11/16 9/16 1 1/8 2 1/2 1 3/8 1 1/2 G1112KRRB (KPPB4/KLLB) S1112K (T-30682) 5.31
RAK, TAK 45 GE45KRRB (KPPB4) SE45K
RAK, TAK 1 7/8 55.56 112.7 62.7 158 200 55.6 17.5 17.5 23.8 69.8 38.1 27.8 16 G1114KRRB (KPPB3) S1114K T-40245 3.003
RAK, TAK, LAK 1 15/16 2 3/16 4 7/16 2 15/32 6 7/32 7 7/8 2 3/16 11/16 11/16 15/16 2 3/4 1 1/2 1 3/32 5/8 G1115KRRB (KPPB3/KLLB) S1115K (T-30706) 6.62
RAK, TAK 50 GE50KRRB (KPPB3) SE50K
RAK, TAK 2 G1200KRRB (KPPB4) S1200K T-40246 3.901
RAK, TAK 2 1/8 61.91 124.6 71.4 176.2 222.3 58.7 19 18.3 29.4 76.2 43.7 29.4 16 G1202KRRB (KPPB4) S1202K (T-30738) 8.6
RAK, TAK, LAK 2 3/16 2 7/16 4 29/32 2 13/16 6 15/16 8 3/4 2 5/16 3/4 23/32 1 5/32 3 1 23/32 1 5/32 5/8 G1203KRRB (KPPB4/KLLB) S1203K
RAK, TAK 55 GE55KRRB (KPPB4) SE55K
RAK 2 1/4 G1204KRRB S1204K T-40247 5.511
RAK 2 3/8 68.26 137.3 77.8 188.1 239.7 60.3 22.2 17.5 29.4 84.1 46.8 30.2 16 G1206KRRB S1206K (T-31244) 12.15
RAK, LAK 2 7/16 2 11/16 5 13/32 3 1/16 7 13/32 9 7/16 2 3/8 7/8 11/16 1 5/32 3 5/16 1 27/32 1 3/16 5/8 G1207KRRB (KLLB) S1207K
RAK 60 GE60KRRB SE60K
RAK 2 11/16 76.2 154 85.7 203.2 266.7 73 33.3 20.6 34.9 96.8 45.2 36.5 20 G1211KRRB S1211KT T-22503 7.92
RAK 70 3 6 1/16 3 3/8 8 10 1/2 2 7/8 1 5/16 13/16 1 3/8 3 13/16 1 25/32 1 7/16 3/4 GE70KRRB SE70K 17.46
RAK 2 15/16 84.14 163.5 92.1 241.3 304.8 82.6 38.1 22.2 31.8 101.6 54.8 41.3 20 G1215KRRB S1215K T-20134 9.026
RAK 75 3 5/16 6 7/16 3 5/8 9 1/2 12 3 1/4 1 1/2 7/8 1 1/4 4 2 5/32 1 5/8 3/4 GE75KRRB SE75K 19.9
(1) Bearing number for RAK is G-KRRB. TAK uses G-KPPB type LAK uses G-KLLB. Note: All units have 1/8 pipe thread grease fitting except 1/2-11/16 and 3/4 units which have 1/4-28 fitting.
RAK, TAK, LAK INDUSTRIAL SERIES
Timken RAK, TAK and LAK pillow blocks are suggested for industrial
applications where normal loads are encountered.
• A compact, one-piece housing that can be mounted in any
position.
• Pillow blocks self-align at mounting with the spherical outside
diameter of the bearing fitting into corresponding spherical
housing seat.
• Units are prelubricated and ready for immediate installation.
• Grease fitting is provided for relubrication.
• Self-locking collars are supplied with all units.
• RAK pillow block is equipped with G-KRRB (R-Seal) wide inner
ring bearings, the TAK with G-KPPB (Tri-Ply Seal) wide inner ring
bearings and the LAK with the G-KLLB (Mechani-Seal) wide inner
ring bearings.
• Contact a Timken representative to discuss highly corrosive
applications (food processing, chemical exposure) where
Timken thin dense chrome coated bearings can be utilized.
BEARING DATA
Unit Bearing Number Dimensions and Load Ratings
RAK G.KRRB Page D54
TAK G.KPPB Page D65
LAK G.KLLB Page D62
TO ORDER, SPECIFY UNIT AND SHAFT DIAMETER. Example: RAK 1 7/16’’. POPULAR SIZES ARE IN BOLD.
Suggested shaft tolerances: ½”- 1 15/16”, nominal to -.013 mm, -.0005”;
2” - 2 15/16”, nominal to -.025 mm, -.0010”.
S T
A
d
B
1
1
1
H
E
F
J
L
45°
N
N
1
H
1
H2 |
近期推荐轴承型号RAK1,
,
SM1207K,
FLTYPEE1-3/16,
1108KRR,
312K,
5307K,
HJ-162416RS,
JTT-610,
KP5A,
GRA014RRB,
GYM1300KRRB,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

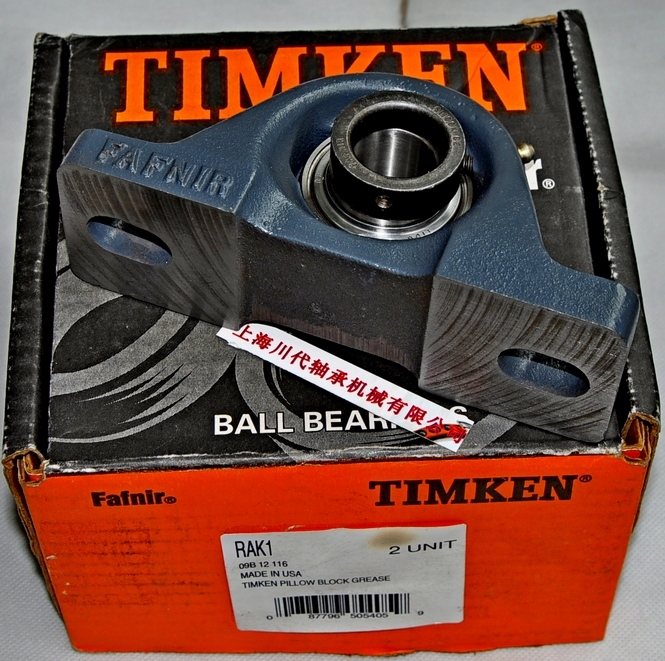

| RAK1产品详细图片： |
 |
| FAFNIR轴承品牌介绍： |
| FAFNIR轴承历经一世纪考验,始终在美国业界占有一席之地。FAFNIR轴承隶属于美国TIMKEN公司,以生产各类球轴承享誉,FAFNIR的高精度主轴轴承,带座球轴承,AIRFRAME飞机控制用球,滚针,关节轴承,广泛用于工业和航天业界。FAFNIR直线运动滚动支承分为直线运动球轴承和滚动导轨支承。滚动轴承附件包括紧定套、退卸衬套、滚动轴承座、外球面轴承座等。主要生产以球轴承为主的多种精密轴承产品。 |
上海川代轴承机械有限公司专业销售FAFNIR轴承 RAK1轴承,FAFNIR轴承品牌供应商,我们为您提供RAK1的具体的规格参数及报价，本公司同时销售包括FAFNIR轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询FAFNIR轴承 RAK1轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
